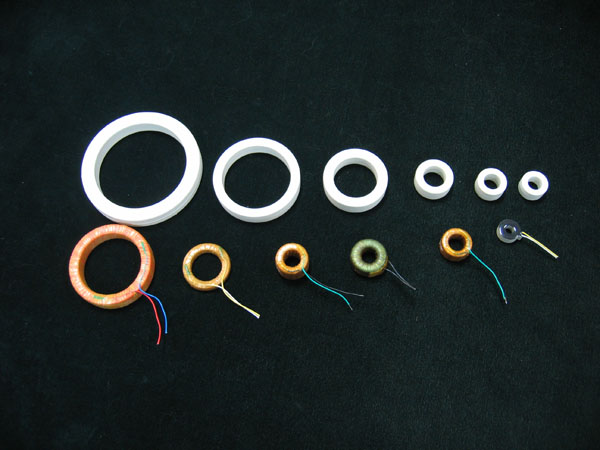

| Nanocrystalline
core for Current transformer |
|
Features： |
| ◇ High Saturate magnetic induction BS |
| ◇ High initial permeability |
| ◇ Good temperature stability（-55℃～130℃） |
| |
| Applications： |
| ◇ High precision current and voltage
transformer |
| ◇ Current leakage circuit breakers |
| ◇ Common mode choke |
| |
 |
|
|

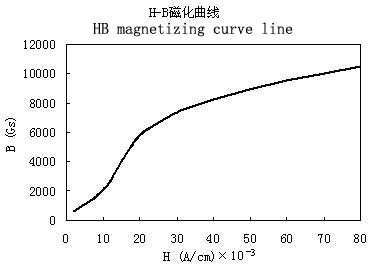

| |
| Specification： |
| Basic parameter |
| Basic magnetic parameter |
Nan-crystalline FUI-I |
Permalloy(Ni80Fe) |
Saturate magnetic
induction BS (T)
|
1.20
|
0.70 |
| Initial permeability(GS/Oe) |
50000～100000 |
50000～100000 |
| Maximum(GS/Oe) |
>300000 |
>200000 |
| Corecivity(A/m) |
<1.6 |
<0.8 |
| Density(g/cm3) |
7.2 |
8.8 |
| The magnetism
core packs coefficient |
>0.70 |
>0.88 |
|
| |
| Specification and electric parameter： |
| Type No. |
Core dimensions(mm)OD×ID×H |
Finifhed dimentions(mm)OD×ID×H |
Output the voltage(mV) |
| FUO-I101310 |
9.6×13.2×10 |
8.5×15.0×12.0
|
≥0.20 |
| FUO-I132210 |
13.2×21.5×10 |
11.5×24.0×12.9 |
≥0.28 |
| FUO-I141907 |
14×19×6.5 |
12.0×22.1×9.0 |
≥0.12 |
| FUO-I141908 |
14×19×8 |
12.1×22.5×10.1 |
≥0.18 |
| FUO-I142010 |
14×20×10 |
12.1×22.5×12.2 |
≥0.25 |
| FUO-I152110 |
15×21×10 |
12.9×23.5×12.8 |
≥0.26 |
| FUO-I162110 |
16×21×10 |
14.0×24.5×12.5 |
≥0.25 |
| FUO-I162308 |
16×23×8 |
14.0×24.9×10.9 |
≥0.20 |
| FUO-I162610 |
16×26×10 |
14.0×28.1×13.0 |
≥0.28 |
| FUO-I202507 |
20×25×6.5 |
18.2×27.4×9.4 |
≥0.07 |
| FUO-I182815 |
18×28×15 |
16.2×29.5×17.0 |
|
| FUO-I203015 |
20×30×15 |
17.8×33.1×17.5 |
|
| FUO-I203210 |
20×32×10 |
18.0×34.2×13.1 |
|
| FUO-I254010 |
25×40×10 |
22.5×42.5×13.0 |
|
| FUO-I254015 |
25×40×15 |
21.9×43.2×18.9 |
|
| FUO-I325015 |
32×50×15 |
29.0×53.2×18.2 |
|
| FUO-I325020 |
32×50×20 |
28.5×53.2×23.5 |
|
| FUO-I406020 |
40×60×20 |
37×63×24 |
|
| FUO-I406420 |
40×64×20 |
37×67×24 |
|
| FUO-I407020 |
40×70×20 |
37×73×24 |
|
| FUO-I508020 |
50×80×20 |
47×84×25 |
|
| FUO-I508025 |
50×80×25 |
47×84×29 |
|
| FUO-I509030 |
50×90×30 |
46×94×34 |
|
| FUO-I5010025 |
50×100×25 |
46×104×29 |
|
| FUO-I7012030 |
70×120×30 |
65×125×35 |
|
| FUO-I8012025 |
80×120×25 |
75×125×30 |
|
| FUO-I9012525 |
90×125×25 |
85×130×30 |
|
| FUO-I9013030 |
90×130×30 |
85×135×35 |
|
| FUO-I10012025 |
100×120×25 |
94×126×31 |
|
| FUO-I10014025 |
100×140×25 |
94×146×31 |
|
| FUO-I12017025 |
120×170×25 |
114×176×31 |
|
|
| |
