Products - Core
- Nanocrystalline Cores With Lower Remanene
And Core Loss |
| |

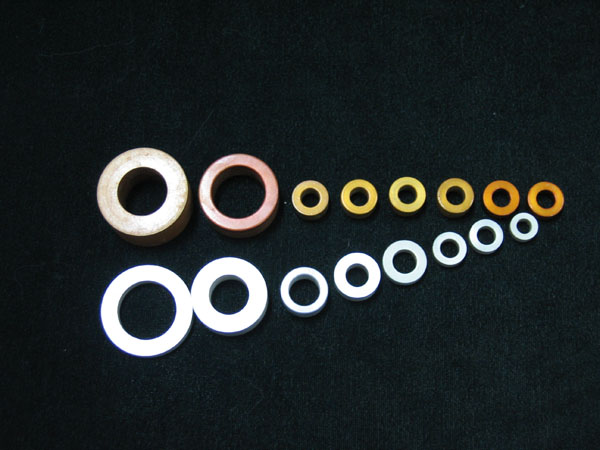

| Nanocrystalline
Cores With Lower Remanene And Core Loss |
 |
Features： |
| ◇ Low remanence |
| ◇ High pulse permeability |
| ◇ Low core loss |
| ◇ Good frequency character and temperature
stability |
| |
| Application： |
| ◇ Unipolarity pulse transformer |
| ◇ Switching power supply and choppers,triggers |
| ◇ Current leakage circuit breakers
with DC bias |
|
| |
 |
 |
|
| |
| Properties： |
Average
permeability
μ(DC) |
Remanency
Br(T) |
Saturation
Bs(T) |
Pulse permeabilityμp |
Core
loss
P（W/Kg）Bm=0.5T f=20 kHz |
| △B=0.6Tτ=1us |
△B=0.9Tτ=3us |
| 30000 |
<
0.15 |
1.20 |
> 9000 |
>
10000 |
≤22 |
|
| |
| Specification： |
| See the daily specification of our
company that cores can be made for meeting the user's needs
. |
| |
|
| |
|
