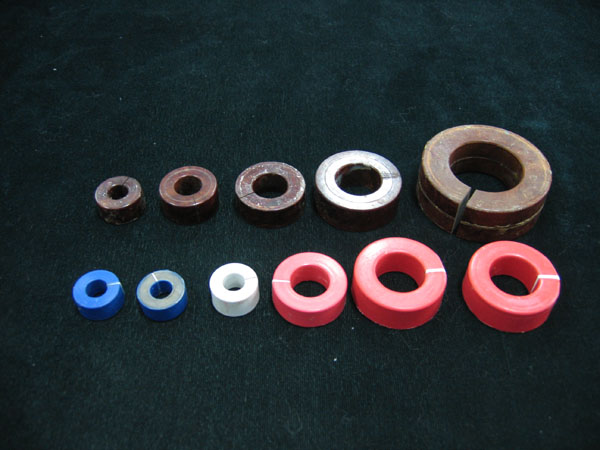

| Amorphous
choke core with gap |
 |
Features： |
| ◇ Large DC bias characteristics |
| ◇ Permeabilityμ=180~200 |
| ◇ Good frequency and temperature characteristics |
| ◇ Low core loss |
| |
| Applications： |
| ◇ Output choke coil for SMPS |
| ◇ Choke coil for DC/DC converter |
| ◇ Normal mode choke coil |
| ◇ Choke coil for adapter and battery
charger |
| ◇ PFC choke coil |
|
|
| |
 |
 |
 |
 |
| |
| 3. specifications and electric
parameters： |
| 1) specification |
| Grade |
CoreDimensions（mm） |
Finished
dimentions(mm) |
Electric
Parameters |
| ID |
OD |
H |
ID |
OD |
H |
AL(μH) |
AT |
| 5012A |
12 |
20 |
5.0 |
9.7 |
22.5 |
8.0 |
0.085 |
180 |
| 5012B |
12 |
20 |
8.0 |
9.7 |
22.5 |
11.0 |
0.120 |
180 |
| 5016 |
16 |
26 |
10.0 |
14.3 |
30.2 |
13.5 |
0.132 |
280 |
| 5020 |
20 |
32 |
10.0 |
17.5 |
34.5 |
13.5 |
0.120 |
350 |
| 5025A |
25 |
40 |
12.5 |
23.0 |
45.0 |
16.0 |
0.150 |
370 |
| 5025B |
25 |
40 |
15.0 |
23.0 |
45.0 |
19.0 |
0.200 |
370 |
| 5032 |
32 |
50 |
15.0 |
29.0 |
55.0 |
18.0 |
0.126 |
470 |
| 5040 |
40 |
64 |
15.0 |
37.8 |
67.5 |
19.0 |
0.160 |
600 |
| 5050 |
50 |
80 |
20.0 |
47.0 |
85.0 |
24.0 |
0.200 |
730 |
| 5056 |
56 |
92 |
25.0 |
53.0 |
97.02 |
9.0 |
0.250 |
800 |
|
| |
| 2) echnical
parameter for winding wire inducter |
| Grade |
CoreDimensions(mm) |
Normal rated
Current I(A) |
Inductance
L(μH) |
AL (μH) |
Wing turnsN |
| 5012B |
12×20×8.0 |
3.0
5.0
8.0
10.0 |
400
155
60
40 |
0.115 |
60
37
23
19 |
| 5016 |
16×26×10 |
3.0
5.0
8.0
10.0
15.0
20.0 |
1000
300
155
100
45
25 |
0.133 |
87
48
34
28
18
14 |
| 5020 |
20×32×10 |
5.0
8.0
10.0
15.0
20.0 |
505
255
165
75
45 |
0.120 |
65
46
37
25
19 |
| 5025A |
25×40×12.5 |
5.0
8.0
10.0
15.0
20.0 |
520
255
170
75
45 |
0.140 |
61
43
35
23
18 |
|
| |
| 2) Physical
characteristic |
| Dencityg/cm3 |
Curie temperature
Tc(℃) |
Crystallization
Temperature Tx(℃) |
Saturation
Bs(T) |
Resistance
Rate ρ(Ω-cm) |
Extention
coefficient λs(10-6) |
| 7.3 |
410 |
530 |
1.4 |
130 |
27 |
|
| |
